| L / Ø | Ø3.0 (Slim) | Ø3.3 (Slim) | Ø3.5 | Ø3.8 | Ø4.2 | Ø4.5 | Ø5.0 |
| 8mm | E3008 | E3308 | E3508 | E3808 | E4208 | E4508 | E5008 |
| 10mm | E3010 | E3310 | E3510 | E3810 | E4210 | E4510 | E5010 |
| 11.5mm | E3011 | E3311 | E3511 | E3811 | E4211 | E4511 | E5011 |
| 13mm | E3013 | E3313 | E3513 | E3813 | E4213 | E4513 | E5013 |
| 16mm | ——– | ——– | E3516 | E3816 | E4216 | E4516 | E5016 |
EVA Mountless Dental Implant
GDT EVA Implant is a mountless internal hex dental implant designed to deliver strong fixation and reliable performance across a wide range of clinical protocols. It features a cylindrical-conical body with progressive threading that creates an effective bone-condensing effect, supporting stability even in challenging bone quality. The implant incorporates a reverse-tapered neck with platform switching to help preserve crestal bone and soft tissue volumes, contributing to long-term stability and natural aesthetics. EVA is available with an Internal Hexagon 2.42 mm connection, and also in a slim Internal Hex connection for diameters Ø3.0 mm and Ø3.3 mm. The mountless design supports quick driver insertion with a friction fit for secure pick-up from the sterile package and controlled transfer to the implantation site, allowing straightforward driver removal after placement.
Table of Contents
Implant Features

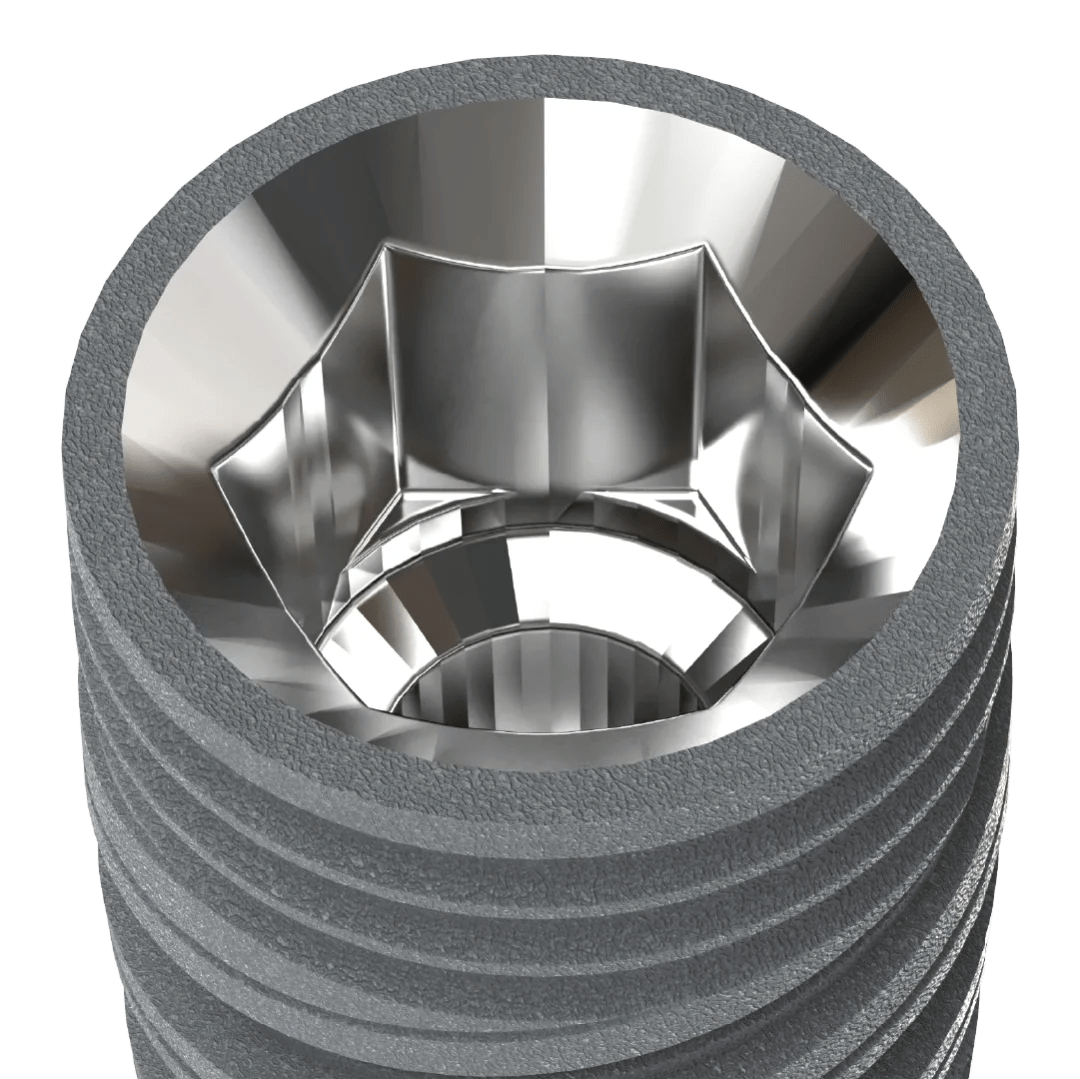

EVA Implant features an Internal Hexagon 2.42mm connection with one universal platform for most diameters, supporting consistent restorative workflows and platform switching. This design helps preserve crestal bone levels and soft tissue volume, contributing to long-term stability and improved natural aesthetics. Slim Internal Hex 2.0mm connection is also available for Ø3.0mm and Ø3.3mm diameters, addressing cases that require a narrower implant profile.

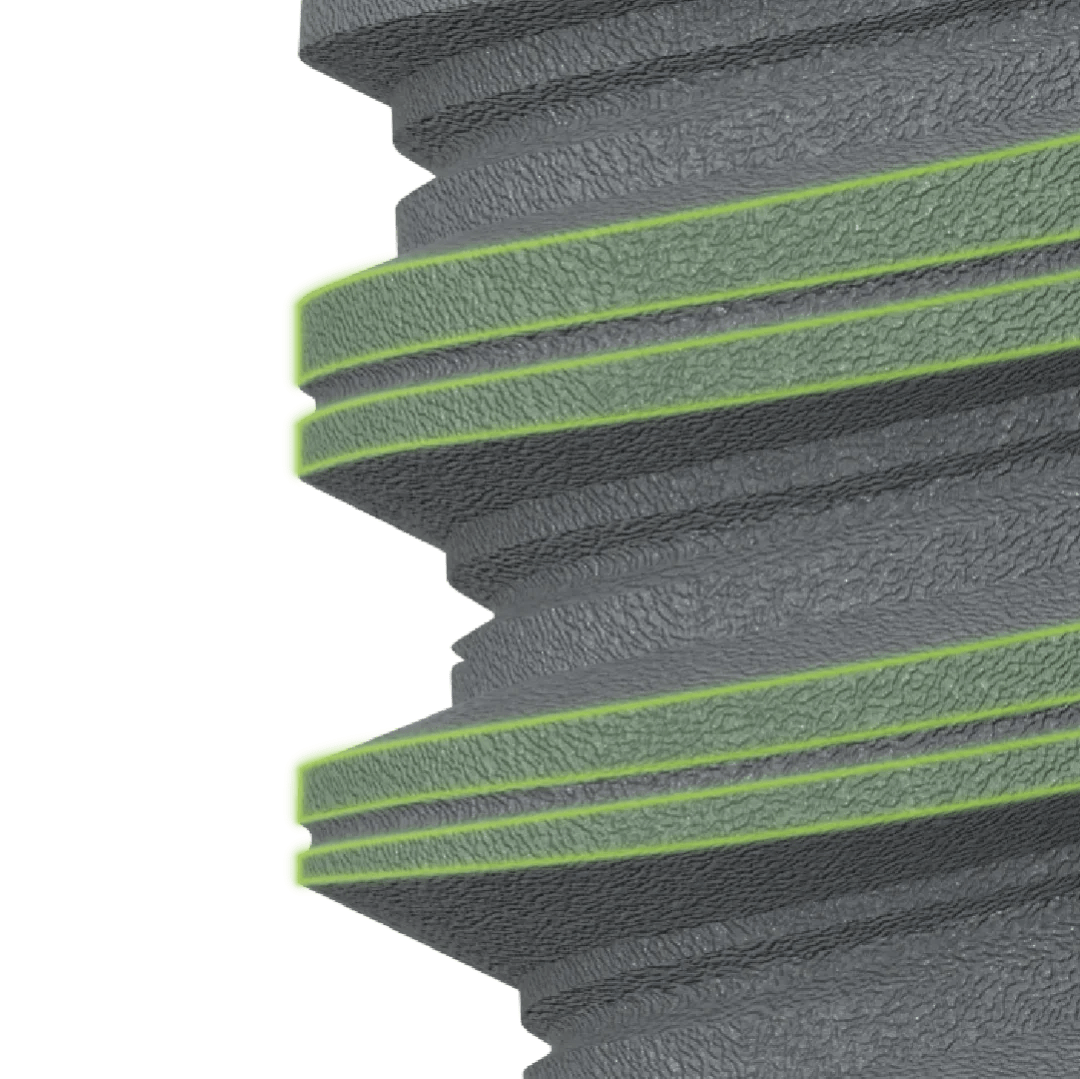

EVA Implant incorporates double progressive threads designed to improve load distribution within the cortical bone. Deeper threads toward the apical region facilitate bone condensation in the cancellous layer, increasing overall implant stability and supporting long-term durability.
RBM stands for Resorbable Blast Media, a surface treatment that creates a rough, hydrophilic implant surface while avoiding residual embedded blast particles or debris. The process blasts the implant with carefully selected hardened particles based on Hydroxyapatite and calcium phosphate formulations, then applies a controlled passivation step that dissolves the blasting media from the surface. By consistently achieving a surface roughness of Ra 1.2 to 1.5, RBM produces a rougher surface compared to traditional acid etching methods. This increased roughness expands surface area and supports stronger implant to bone contact, improving biological fixation and retention characteristics for predictable osseointegration.
The EVA Implant self-tapping system includes increased thread depth and cutting edges with self-drilling capability. This design supports efficient insertion, improves load distribution under functional forces, and contributes to stable fixation throughout healing and loading phases.
EVA Implant aggressive apical apex features expanding threads designed to improve bone condensing and provide a secure fit at the apical region. This design minimizes the risk of micromotion, supports optimal implant stability, and contributes to reliable osseointegration and long-term clinical success.
Sizes & Drilling Protocol
2 Connection Options Available
•Internal Hex 2.42mm
• Slim Internal Hex 2.0mm
* The suggested drilling protocol is a recommendation only and does not replace the clinician’s judgment
Package Content
Surgical Kits
Streamline implant procedures with organized surgical kits built for consistency and control. Featuring essential drills, drivers, and tools in an autoclavable case, each kit is labeled for efficient instrument return and designed to support precise, predictable placement across a wide range of indications.
Digital Solutions
Support a complete digital workflow with key restorative components designed for reliable digital impression capture and virtual model creation. Combined with our CAD/CAM libraries, these solutions help improve accuracy, restoration outcomes, and simplify case planning.
Learn More
Testimonials
Dr. Elias Achey
Michigan, USA
Dr. Jared Van Ittersum
Michigan, USA
Dr. Julissa Mendez
New Jersey, USA
Dr. Emin Orujov
Baku, Azerbaijan
Dr. Daniel Shtern
New Jersey, USA
Dr. Jorge Pacheco
Espinho, Portugal
Dr. Mirela Gjoni
Tirane, Albania
Dr. Jonathan Rabanipour
New York, USA
Dr. Georgi Mendez
New Jersey, USA
Mrs. Evelyn Juarez
Guatemala
FAQs
What does “mountless” mean in GDT EVA dental implant system?
GDT EVA Mountless Implant is supplied without a traditional carrier mount. Instead, it is designed for direct pick-up using a friction-fit driver, allowing secure transfer from the sterile package to the implantation site. This approach simplifies handling, reduces components, and supports a more streamlined surgical workflow.
How does the EVA Implant support stability in challenging bone quality?
Stability is achieved through a combination of a cylindrical–conical body, double progressive threads, and an aggressive apical apex. Together, these features create a strong bone-condensing effect, improve load distribution, and minimize micromotion, supporting reliable fixation even in compromised bone conditions.
What are the available connection options for the EVA dental implant?
The EVA Implant features an Internal Hexagon 2.42mm connection for most diameters and is also available with a slim Internal Hex 2.0mm connection for Ø3.0mm and Ø3.3mm diameters. This allows clinicians to select the appropriate connection based on anatomical requirements and restorative planning.
What role does the RBM surface treatment play in EVA Implant performance?
The RBM surface treatment creates a rough and hydrophilic implant surface without residual blasting particles. This increases implant-to-bone contact and supports strong biological fixation, promoting predictable osseointegration and long-term dental implant stability.
