Conical Impression Coping Transfers

GDT conical connection impression coping aligned above the implant platform, showing the transfer component for final impressions.

GDT Conical Connection Impression Coping Transfers are designed to capture accurate implant level impressions and support a smooth restorative workflow from placement to final prosthetics. Offered in closed tray and open tray options, they help clinicians choose the right approach based on access, comfort, and precision needs. The range also includes snap on cap transfers that simplify handling while maintaining reliable positioning throughout the impression process.

  • Connections
    • Narrow Platform (NP) 2.25mm
      Narrow Platform (NP) 2.25mm
    • Regular Platform (RP) 2.65mm
      Regular Platform (RP) 2.65mm
  • Material
    Stainless Steel
  • Titanium Grade 5 (Snap-on Transfers)
  • Torque Tightening
    25 Ncm for Snap-on Transfers (Recommendation)
Inquire Now
IFU
MSDS

Share:

GDT Conical Connection Impression Coping Transfers are precisely engineered to deliver outstanding reliability across diverse restorative procedures, such as single-unit crowns, bridges, partial dentures, and full dentures. Designed to ensure a smooth workflow from dental implant placement to final restoration, our conical impression copings provide consistent, predictable results every time.

Platform Compatibility

Our conical impression coping transfers are compatible with leading implant systems such as NobelActive® conical connection, and are available in two platform sizes: Regular Platform (RP) 4.3mm-5.0mm, and Narrow Platform (NP) 3.5mm. This compatibility ensures easy integration into a variety of clinical workflows, allowing dentists to confidently select the perfect match for their restorative cases.

Closed Tray vs. Open Tray Transfers

We offer Closed Tray and Open Tray conical impression coping transfers to accommodate diverse clinical requirements and preferences.

  • GDT Closed Tray transfers are beneficial for situations where access is restricted or inter-arch space is limited. These transfers simplify procedures in posterior regions and enhance patient comfort, especially beneficial when treating patients with limited mouth opening.
  • GDT Open Tray transfers are designed for scenarios requiring maximum precision, such as anterior or aesthetic cases. These transfers achieve precise results, maintaining stability throughout the impression process.

Both transfer types are manufactured from medical-grade stainless steel, providing exceptional safety, durability, and long-term performance, enabling dentists to handle diverse restorative challenges confidently.

Snap-On Cap Transfer Abutments

GDT Conical Snap-On Cap Transfers offer an increased efficiency without compromising accuracy. Manufactured from Titanium Grade 5, these transfer abutments combine superior strength, excellent biocompatibility, and seamless integration into clinical workflows. The Snap-On Cap, made from Acetal Polymer, securely locks into position within the impression tray, reducing procedural steps and minimizing movement risks for improved precision.

Additionally, the GDT Conical Snap-On Cap Transfer serves as temporary and final abutment. This flexibility enables dentists to maintain consistent precision throughout the healing and prosthetic phases, reducing the frequency of component changes and streamlining patient care.

Confidence for Every Restoration

GDT Conical Connection Impression Coping Transfers are precisely engineered to deliver outstanding reliability across diverse restorative procedures, such as single-unit crowns, bridges, partial dentures, and full dentures. Designed to ensure a smooth workflow from dental implant placement to final restoration, our conical impression copings provide consistent, predictable results every time.

Platform Compatibility

Our conical impression coping transfers are compatible with leading implant systems such as NobelActive® conical connection, and are available in two platform sizes: Regular Platform (RP)  4.3mm-5.0mm, and Narrow Platform (NP) 3.5mm. This compatibility ensures easy integration into a variety of clinical workflows, allowing dentists to confidently select the perfect match for their restorative cases.

Closed Tray vs. Open Tray Transfers

We offer Closed Tray and Open Tray conical impression coping transfers to accommodate diverse clinical requirements and preferences.

  • GDT Closed Tray transfers are beneficial for situations where access is restricted or inter-arch space is limited. These transfers simplify procedures in posterior regions and enhance patient comfort, especially beneficial when treating patients with limited mouth opening.
  • GDT Open Tray transfers are designed for scenarios requiring maximum precision, such as anterior or aesthetic cases. These transfers achieve precise results, maintaining stability throughout the impression process.

Both transfer types are manufactured from medical-grade stainless steel, providing exceptional safety, durability, and long-term performance, enabling dentists to handle diverse restorative challenges confidently.

Snap-On Cap Transfer Abutments

GDT Conical Snap-On Cap Transfers offer an increased efficiency without compromising accuracy. Manufactured from Titanium Grade 5, these transfer abutments combine superior strength, excellent biocompatibility, and seamless integration into clinical workflows. The Snap-On Cap, made from Acetal Polymer, securely locks into position within the impression tray, reducing procedural steps and minimizing movement risks for improved precision.

Additionally, the GDT Conical Snap-On Cap Transfer serves as temporary and final abutment. This flexibility enables dentists to maintain consistent precision throughout the healing and prosthetic phases, reducing the frequency of component changes and streamlining patient care.

Confidence for Every Restoration

GDT Conical Connection Impression Coping Transfers are engineered for consistent performance and seamless integration into various clinical workflows. These abutments help dental professionals deliver outstanding restorative outcomes. With attention to material quality and procedural efficiency, our conical impression coping transfers provide the confidence and consistency needed to improve patient satisfaction and achieve long-term clinical success.

GDT Conical Impression Coping Transfers

L / ØNPRP
12mm – Closed TraySTRCNPSTRCRP
15mm – Open TraySTRCRPSTRORP
Transfer Copings

L / ØNPRP
9mmCTR9NPCTR9RP
15mmCTR15NPCTR15RP
Clip Transfers

L / ØNPRP
1.5mmSOC15NPSOC15RP
3mmSOC30NPSOC30RP
4.5mmSOC45NPSOC45RP
Snap-CapPSOCPSOC
Snap-on Transfers

TypeClick AttachmetBall AttachmetGdtLoc Attachmet
CodeTFLTFBTFB
For Overdenture

TypeMU 1.4MU 1.6
Closed TrayNM-TCTMU-TCT
Open TrayNM-TOTMU-TOT
For Multi-Unit Abutments

Read More
Transfer Copings
Transfer Copings
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Narrow-Connection-NP-2.25mm-sign.svg

Transfer Copings - Narrow Platform (NP)

TYPE
LENGTH
Closed Tray
12mm
Open Tray
15mm

GDT conical connection NP closed tray impression coping transfer with long guide screw, on white background.

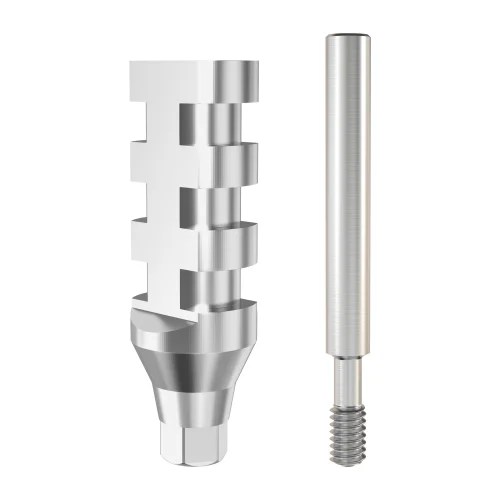

GDT conical connection NP open tray impression coping transfer with long guide screw, on white background.
CODE
STRCNP
STRCRP
PLATFORMØ2.25
DIAMETERØ4.7
CONNECTIONNarrow Platform (NP) 2.25mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Regular-Connection-NP-2.65mm-sign.svg

Transfer Copings - Regular Platform (RP)

TYPE
LENGTH
Closed Tray
12mm
Open Tray
15mm

GDT conical connection RP closed tray impression coping transfer with long guide screw, on white background.

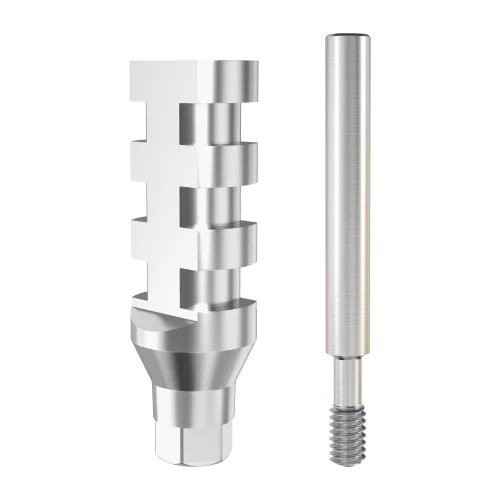

GDT conical connection RP open tray impression coping transfer with long guide screw, on white background.
CODE
STRCRP
STRORP
PLATFORMØ2.65
DIAMETERØ4.7
CONNECTIONRegular Platform (RP) 2.65mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Narrow-Connection-NP-2.25mm-sign.svg

Clip Transfers - Narrow Platform (NP)

LENGTH
9mm
15mm

GDT conical connection NP clip transfer impression coping, 9 mm height, front view on white background.
GDT conical connection NP clip transfer impression coping, 15 mm height, front view on white background.
CODE
CTR9NP
CTR15NP
PLATFORMØ2.25
DIAMETERØ4.7
CONNECTIONNarrow Platform (NP) 2.25mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Regular-Connection-NP-2.65mm-sign.svg

Clip Transfers - Regular Platform (RP)

LENGTH
9mm
15mm

GDT conical connection RP clip transfer impression coping, 9 mm height, front view on white background.
GDT conical connection RP clip transfer impression coping, 15 mm height, front view on white background.
CODE
CTR9RP
CTR15RP
PLATFORMØ2.65
DIAMETERØ4.7
CONNECTIONRegular Platform (RP) 2.65mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Narrow-Connection-NP-2.25mm-sign.svg

Snap-On Transfers - Narrow Platform (NP)

LENGTH
1.5mm
3mm
4.5mm
Snap-Cap

GDT conical connection NP snap on transfer impression coping, 1.5 mm, front view on white background.
GDT conical connection NP snap on transfer impression coping, 3 mm, front view on white background.
GDT conical connection NP snap on transfer impression coping, 4.5 mm, front view on white background.
GDT Impression coping Snap-on plastic cap for transfer abutment
CODE
SOC15NP
SOC30NP
SOC45NP
PSOC
PLATFORMØ2.25
DIAMETERØ2.65
CONNECTIONNarrow Platform (NP) 2.25mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Regular-Connection-NP-2.65mm-sign.svg

Snap-On Transfers - Regular Platform (RP)

LENGTH
1.5mm
3mm
4.5mm
Snap-Cap

GDT conical connection RP snap on transfer impression coping, 1.5 mm, front view on white background.
GDT conical connection RP snap on transfer impression coping, 3 mm, front view on white background.
GDT conical connection RP snap on transfer impression coping, 4.5 mm, front view on white background.
GDT Impression coping Snap-on plastic cap for transfer abutment
CODE
SOC15RP
SOC30RP
SOC45RP
PSOC
PLATFORMØ2.65
DIAMETERØ2.65
CONNECTIONRegular Platform (RP) 2.65mm

For Overdenture Attachments

TYPE
LENGTH
Click Attachment
11.3mm
Ball Attachment
5.6mm
GdtLoc Attachment
5.6mm

Impression coping transfer for Click attachment overdenture abutments
Impression coping transfer for ball attachment overdenture abutments
Impression coping transfer for ball attachment overdenture abutments
CODE
TFL
TFB
TFB

For Multi-Unit 1.4mm

TYPE
LENGTH
Closed tray
14mm
Open tray
16mm

Impression coping closed tray transfer for Multi-unit 1.4mm abutments
Impression coping open tray transfer for Multi-unit 1.4mm abutments
CODE
NM-TCT
NM-TOT

For Multi-Unit 1.6mm

TYPE
LENGTH
Closed tray
7mm
Open tray
15mm

Impression coping closed tray transfer for Multi-unit 1.6mm abutments
Impression coping open tray transfer for Multi-unit 1.6mm abutments
CODE
MU-TCT
MU-TOT

Media

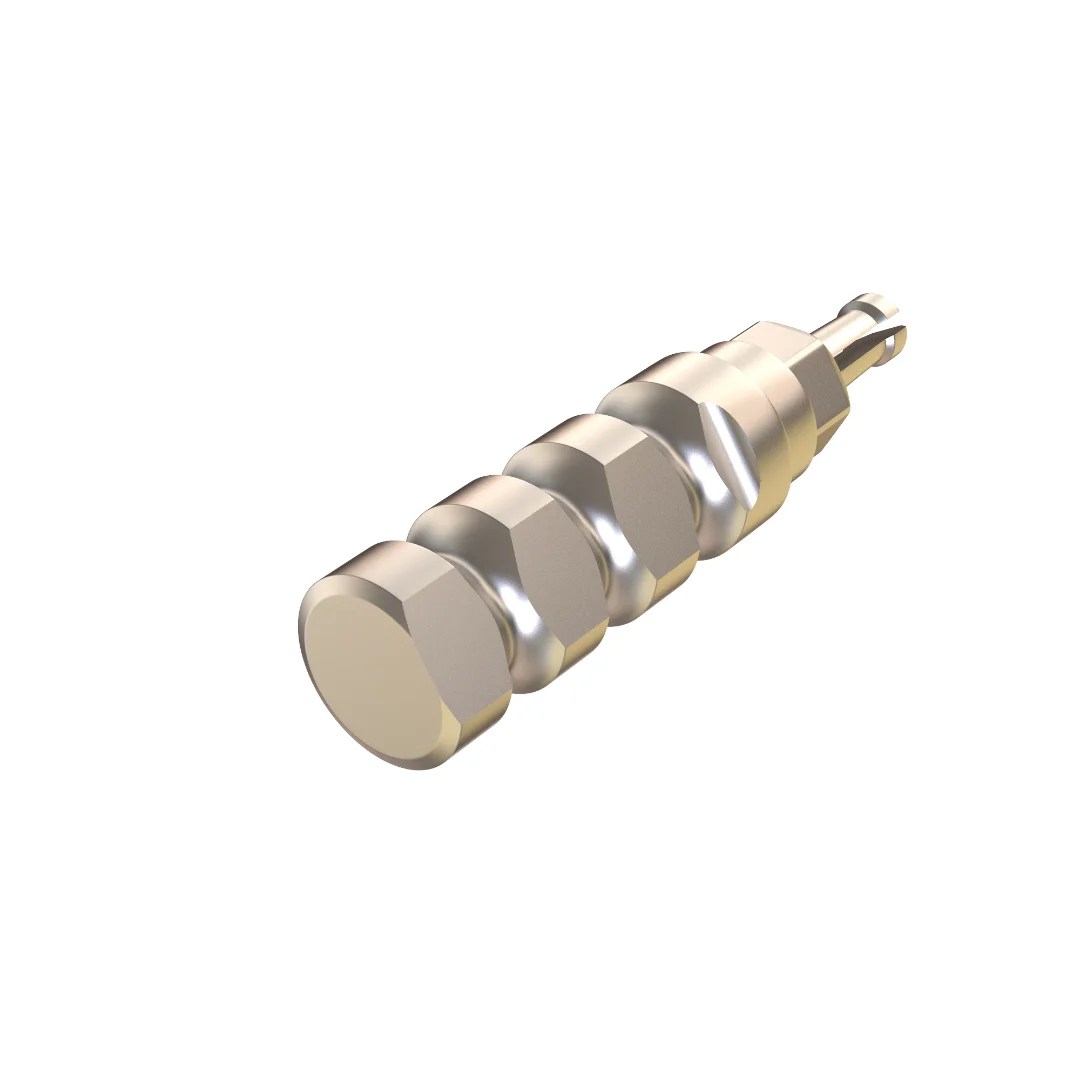

GDT conical connection impression coping transfer, clip transfer, gold finish, angled view.

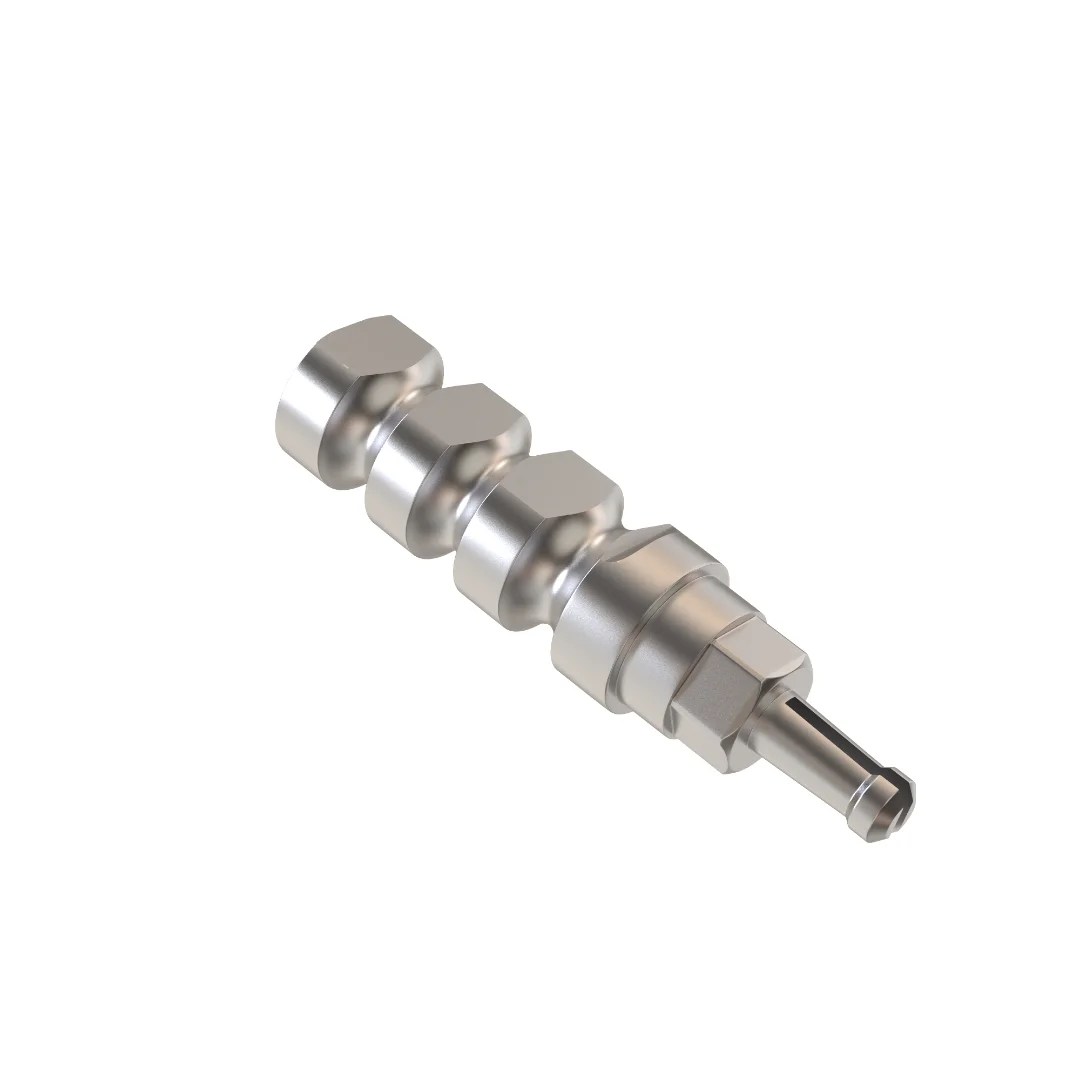

GDT conical connection impression coping transfer, clip transfer, side view showing retention grooves and connection tip.

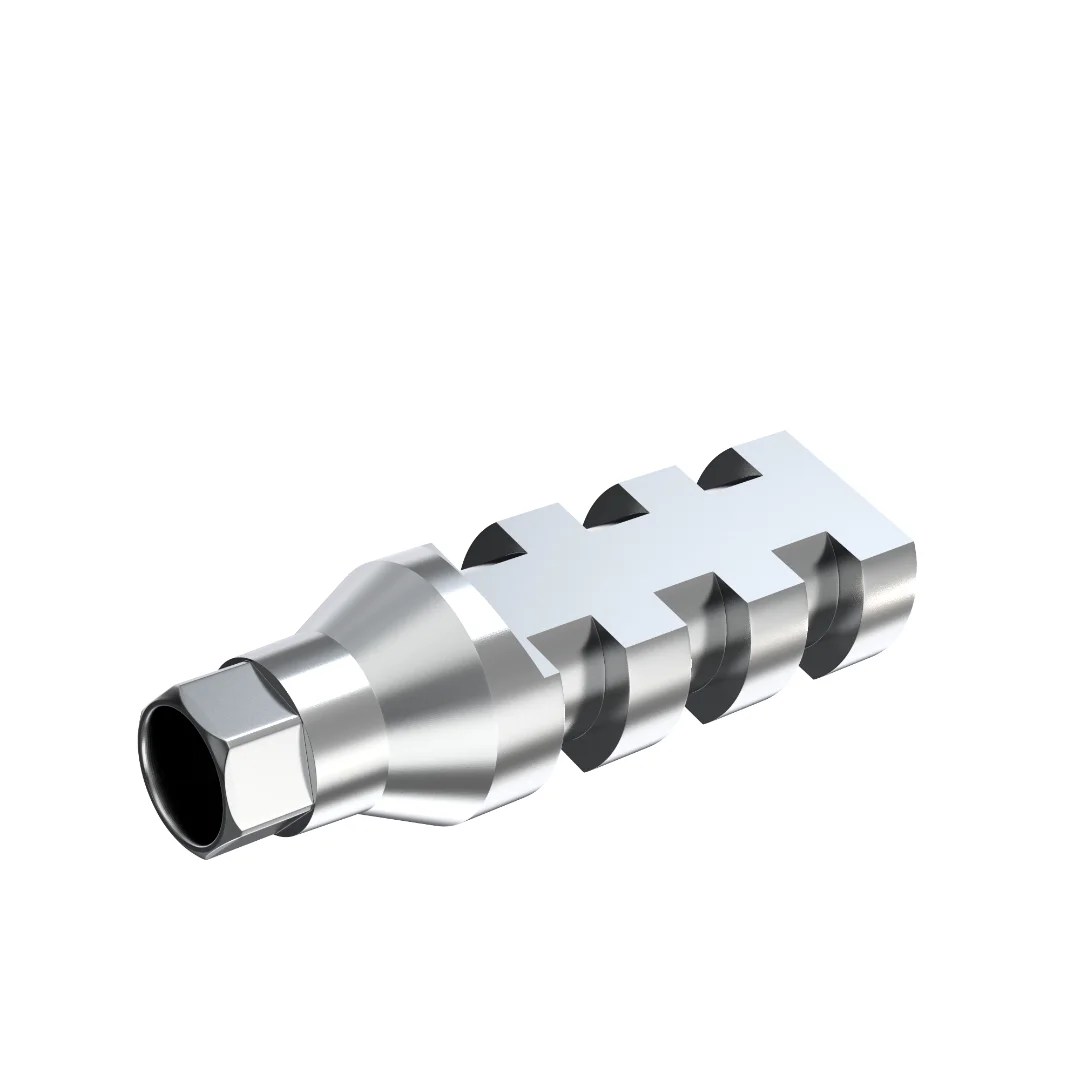

GDT conical connection impression coping transfer, angled view showing the connection tip.

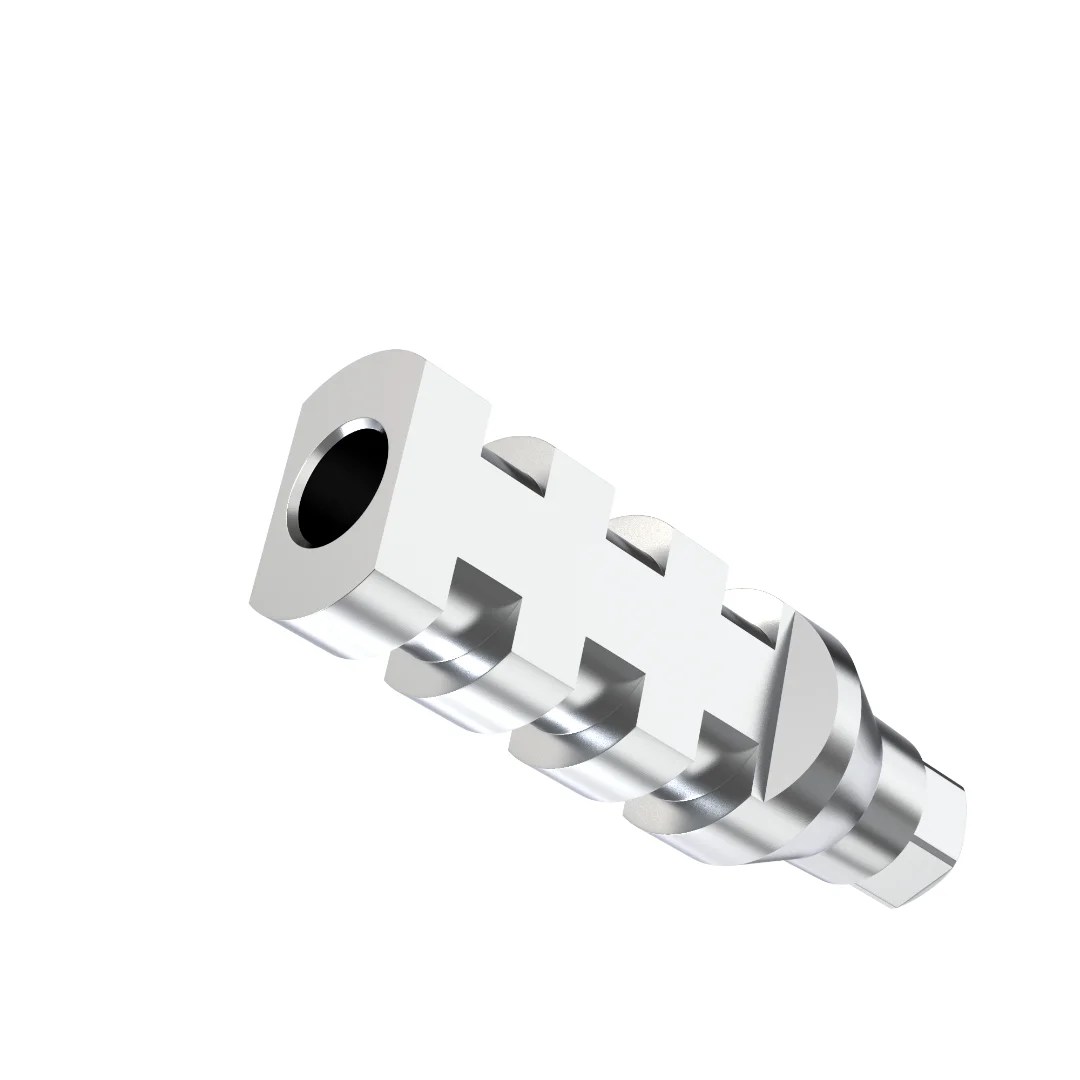

GDT conical connection impression coping transfer, rear view showing the connection opening.
GDT conical connection impression coping transfer, straight 10 mm, gold finish, angled view.
GDT conical connection impression coping transfer, straight 11.5 mm, gold finish, side view
