GDT conical connection click attachment aligned above the implant platform, showing the screw retained attachment interface.

Conical Click Attachment

GDT conical connection click attachment aligned above the implant platform, showing the screw retained attachment interface.

GDT Conical Click Attachments provide a secure, implant-retained solution for overdentures in partial and fully edentulous cases, focusing on stable seating and long-term patient comfort. Built around a replaceable silicone cap system, they provide predictable retention, easy maintenance, and a controlled insertion and removal path. An angulated option is available to help manage implant divergence and achieve a more unified restorative trajectory without compromising prosthetic stability.

  • Connections
    • Narrow Platform (NP) 2.25mm
      Narrow Platform (NP) 2.25mm
    • Regular Platform (RP) 2.65mm
      Regular Platform (RP) 2.65mm
  • Material
    Titanium Grade 5 (Ti-6Al-4V Eli)
  • Torque Tightening
    25 Ncm (Recommendation)
Inquire Now
IFU
MSDS

Share:

GDT Conical Click Attachments are designed to streamline the restoration of edentulous and partially edentulous cases with a focus on long-term retention, comfort, and prosthetic stability. These components enable a secure connection between the dental implant and overdenture, providing consistent performance and user-friendly maintenance throughout the lifespan of the prosthesis. Engineered for clinical cases requiring predictable retention and improved patient compliance, GDT Click Attachments offer a practical solution for optimal treatment outcomes in removable implant-supported restorations.

Compatible with leading implant systems, GDT Conical Click Attachments are offered in two platform sizes: Narrow Platform (NP) 3.5mm and Regular Platform (RP) 4.3-5.0mm.

Customized Retention and Seamless Integration

Each GDT Conical Click Attachment is inserted directly into the dental implant and secured with a silicone caps system. This design allows for a firm and stable connection, significantly reducing micromovements during daily functions. The secure marginal seal provided by the click attachment system supports the longevity of the prosthesis while helping to protect peri-implant soft tissues.

These silicone caps are available in five options:

• Yellow cap – Extra Soft: 0.6 kg / 1.3 lbs retention

• Pink cap – Soft: 1.2 kg / 2.6 lbs

• Clear cap – Standard: 1.8 kg / 4.0 lbs

• Purple cap – Strong: 2.5 kg / 5.5 lbs

• Black cap – Laboratory use: 0 kg / 0lbs (non-retentive)

Each cap is color-coded for easy identification and allows dentists to adjust the retention strength to accommodate patient comfort, soft tissue resilience, and functional requirements. This level of customization ensures that overdentures remain stable during mastication and speech while enabling effortless insertion and removal.

The titanium housing is manufactured from Titanium Grade 5 (Ti-6Al-4V ELI), a medical-grade alloy selected for its exceptional strength, corrosion resistance, and biocompatibility. This ensures both mechanical reliability and clinical safety throughout the duration of use. The straightforward attachment mechanism also allows patients to maintain their prosthesis independently, minimizing in-clinic maintenance.

Angulated Click Attachments for Divergence Correction

For cases involving non-parallel implant placement, GDT offers Angulated Click Attachments in 18° and 30° angles. These components are engineered to compensate for implant divergence of up to 60° in all directions, promoting restorative parallelism without the need for surgical adjustments. This added flexibility improves prosthetic design while maintaining optimal load distribution across the arch.

By incorporating angulated click attachments, clinicians can overcome anatomical constraints and achieve a unified restorative trajectory, simplifying the delivery of full-arch prostheses while ensuring mechanical stability.

Extended Lifespan and Clinical Reliability

The geometry of the attachment combined with a silicone-based retentive mechanism extends the service life of both the housing and the silicone caps. The alignment between components promotes a natural seating path, reducing lateral wear and minimizing the need for frequent replacements. This improves clinical efficiency by reducing patient recalls and helps maintain consistent prosthetic retention between visits.

GDT Conical Click Attachments are engineered to retain overdentures for extended periods without performance degradation. Routine maintenance can often be performed by the patient with basic guidance, making this solution convenient for both clinicians and users.

Supporting Retentive Excellence in Implant Dentistry

GDT Conical Click Attachments provide a clinically proven solution to address anatomical challenges and patient-centered demands. With straight and angulated designs, these components enable flexible treatment planning while supporting the long-term function and satisfaction of removable prostheses.

GDT Conical Click Attachment Sizes

L / TypeStraight – NPStraight – RP18˚ – NP18˚ – RP30˚ – NP30˚ – RP
1mmLOC-NP-1LOC-RP-1LOC-NP-1810LOC-RP-1810LOC-NP-3010LOC-RP-3010
2mmLOC-NP-2LOC-RP-2LOC-NP-1820LOC-RP-1820LOC-NP-3020LOC-RP-3020
3mmLOC-NP-3LOC-RP-3LOC-NP-1830LOC-RP-1830LOC-NP-3030LOC-RP-3030
4mmLOC-NP-4LOC-RP-4————————
5mmLOC-NP-5LOC-RP-5————————

TypeExtra Soft CapSoft CapStandard CapStrong CapLab Silicone CapProtective DiscTitanium HousingAnalogImpression CopingDriver
CodeSYCLSPCLSWCLSTCLSBCLDPMTCLAFLTFLHLC
Components
Read More
Straight Click Attachment
Straight Click Attachment
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Narrow-Connection-NP-2.25mm-sign-with-dimensions.svg

Straight Click Attachment - Narrow Platform (NP)

LENGTH
1mm
2mm
3mm
4mm
5mm

GDT conical connection NP straight click attachment, collar height 1mm, gold anodized titanium attachment on white background
GDT conical connection NP straight click attachment, collar height 2mm, gold anodized titanium attachment on white background
GDT conical connection NP straight click attachment, collar height 3mm, gold anodized titanium attachment on white background
GDT conical connection NP straight click attachment, collar height 4mm, gold anodized titanium attachment on white background
GDT conical connection NP straight click attachment, collar height 5mm, gold anodized titanium attachment on white background
CODE
LOC-NP-1
LOC-NP-2
LOC-NP-3
LOC-NP-4
LOC-NP-5
PLATFORMØ2.25
DIAMETERØ4.0
CONNECTIONNarrow Platform (NP) 2.25mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Regular-Connection-NP-2.65mm-sign-with-dimensions.svg

Straight Click Attachment - Regular Platform (RP)

LENGTH
1mm
2mm
3mm
4mm
5mm

GDT conical connection RP straight click attachment, collar height 1mm, gold anodized titanium attachment on white background
GDT conical connection RP straight click attachment, collar height 2mm, gold anodized titanium attachment on white background
GDT conical connection RP straight click attachment, collar height 3mm, gold anodized titanium attachment on white background
GDT conical connection RP straight click attachment, collar height 4mm, gold anodized titanium attachment on white background
GDT conical connection RP straight click attachment, collar height 5mm, gold anodized titanium attachment on white background
CODE
LOC-RP-1
LOC-RP-2
LOC-RP-3
LOC-RP-4
LOC-RP-5
PLATFORMØ2.65
DIAMETERØ4.0
CONNECTIONRegular Platform (RP) 2.65mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Narrow-Connection-NP-2.25mm-sign-with-dimensions.svg

Angulated 18˚ Click Attachment - Narrow Platform (NP)

LENGTH
1mm
2mm
3mm

GDT conical connection NP angulated 18°-degree click attachment with 1mm collar height
GDT conical connection NP angulated 18°-degree click attachment with 2mm collar height
GDT conical connection NP angulated 18°-degree click attachment with 3mm collar height
CODE
LOC-NP-1810
LOC-NP-1820
LOC-NP-1830
PLATFORMØ2.25
DIAMETERØ5.0
CONNECTIONNarrow Platform (NP) 2.25mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Regular-Connection-NP-2.65mm-sign-with-dimensions.svg

Angulated 18˚ Click Attachment - Regular Platform (RP)

LENGTH
1mm
2mm
3mm

GDT conical connection RP angulated 18°-degree click attachment with 1mm collar height
GDT conical connection RP angulated 18°-degree click attachment with 2mm collar height
GDT conical connection RP angulated 18°-degree click attachment with 3mm collar height
CODE
LOC-RP-1810
LOC-RP-1820
LOC-RP-1830
PLATFORMØ2.65
DIAMETERØ5.0
CONNECTIONRegular Platform (RP) 2.65mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Narrow-Connection-NP-2.25mm-sign-with-dimensions.svg

Angulated 30˚ Click Attachment - Narrow Platform (NP)

LENGTH
1mm
2mm
3mm

GDT conical connection NP angulated 30°-degree click attachment with 1mm collar height
GDT conical connection NP angulated 30°-degree click attachment with 2mm collar height
GDT conical connection NP angulated 30°-degree click attachment with 3mm collar height
CODE
LOC-NP-3010
LOC-NP-3020
LOC-NP-3030
PLATFORMØ2.25
DIAMETERØ5.0
CONNECTIONNarrow Platform (NP) 2.25mm
https://gdentalt.com/wp-content/uploads/2026/02/Conical-Regular-Connection-NP-2.65mm-sign-with-dimensions.svg

Angulated 30˚ Click Attachment - Regular Platform (RP)

LENGTH
1mm
2mm
3mm

GDT conical connection RP angulated 30°-degree click attachment with 1mm collar height
GDT conical connection RP angulated 30°-degree click attachment with 2mm collar height
GDT conical connection RP angulated 30°-degree click attachment with 3mm collar height
CODE
LOC-RP-3010
LOC-RP-3020
LOC-RP-3030
PLATFORMØ2.65
DIAMETERØ5.0
CONNECTIONRegular Platform (RP) 2.65mm
Click Attachment Components
Extra Soft Silicone Cap
(0.6 kg / 1.3 lbs)
GDT Click Attachment yellow extra soft silicone cap insert
SYCL
Soft Silicone Cap
(1.2 kg / 2.6 lbs)
GDT Click Attachment pink soft silicone cap insert, isolated product image.
SPCL
Standard Silicone Cap
(1.8 kg / 4 lbs)
GDT Click Attachment clear standard silicone cap insert
SWCL
Strong Silicone Cap
(2.7 kg / 6 lbs)
GDT Click Attachment violet strong silicone cap insert
STCL
Lab Silicone Cap
GDT Click Attachment black lab silicone cap insert.
SBCL
Protective Disc
GDT Click Attachment protective disc
DP
Titanium Housing
GDT Click Attachment metal housing in titanium finish
MTCL

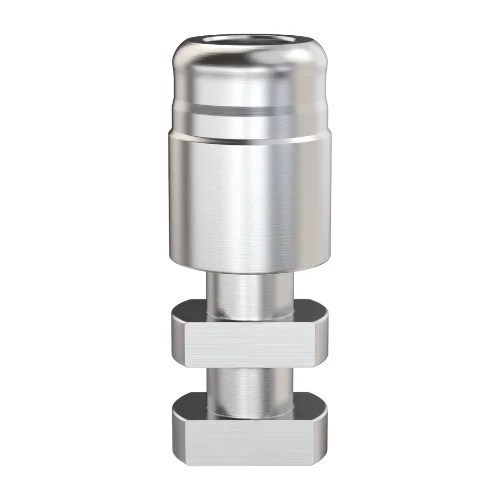

Analog
GDT Click Attachment Analog, shown on a white background.
AFL
Impression Coping
GDT Click Attachment transfer impression coping
TFL
Insertion and Extraction Driver
GDT driver for insertion and extration of Click Attachment silicone caps
HLC

Media

Straight click attachment RP for GDT conical connection implants, top perspective view
Straight click attachment RP for GDT conical connection implants, side perspective view
Angulated click attachment RP 30° for GDT conical connection implants, 2 mm collar height, angled perspective view
Angulated click attachment RP 30° for GDT conical connection implants, 2 mm collar height, side view
Angulated click attachment RP 30° for GDT conical connection implants, 2 mm collar height, front view

FAQs

In which clinical scenarios are GDT Conical Click Attachments most appropriate?

What role do GDT Conical Angulated Click Attachments play in managing implant divergence?

What implant systems are GDT Conical Click Attachments compatible with?
