CAD/CAM Abutments

GDT internal hexagon cad/cam ti-base abutment aligned above the implant platform, illustrating the implant–abutment connection interface.

Used to precisely design customized dental restorations such as crowns, bridges, and implant-supported dentures. Our CAD/CAM Abutments include titanium bases, scan bodies, and analogs, seamlessly integrated with digital impressions to create accurate virtual models. Our digital library is available for 3Shape and Exocad. Download GDT CAD/CAM libraries.

  • Connections
    • Internal Hexagon 2.42mm
      Internal Hexagon 2.42mm
    • Slim Internal Hexagon 2.0mm
      Slim Internal Hexagon 2.0mm
  • Material
    Titanium Grade 5 (Ti-6Al-4V Eli)
  • Torque Tightening
    25 Ncm (Recommendation) For Ti-Bases

GDT CAD/CAM Abutments, including essential components such as titanium bases, scan bodies, and analogs, are captured through digital impression systems. These components allow dental professionals to capture and translate oral anatomies into accurate virtual models. The digital impressions, compatible with leading software platforms such as 3Shape and Exocad, enable flawless design and fabrication of restorations, significantly improving their fit, function, and overall aesthetic appeal.

Angulated and Straight Titanium Bases: Precision Meets Versatility

GDT Angulated and Straight Titanium Bases stand out for their exceptional versatility and performance. The Titanium Base abutments outperform traditional techniques, providing speed, precision, and affordability. Our Titanium Bases provide dental professionals the ability to achieve optimal anatomical crown contours, resulting in excellent aesthetic outcomes even in complex restorative scenarios.

Made from Titanium Grade 5 (Ti-6Al-4V ELI), these abutments feature excellent strength, biocompatibility, and corrosion resistance. Moreover, their concave anatomical collar ensures precise adaptation to gingival contours, significantly improving aesthetic outcomes by minimizing visible metal at the tissue level.

Angulated CAD/CAM Titanium Bases

GDT innovative Angulated Titanium Bases allow dental professionals to adjust the angle of the fixation screw up to 25˚ degrees in any direction. This feature ensures screw access holes are optimally positioned, eliminating common concerns of compromised crown integrity due to improperly placed screw holes. The angulated design significantly improves both aesthetics and patient comfort. By strategically positioning the screw hole, dentists can avoid placing composite fillings in areas prone to excessive stress. This design greatly improves crown durability and aesthetics, while simultaneously simplifying the procedure. Patients no longer need to strain by keeping their mouths excessively open, and dentists can perform abutment fixation more comfortably.

We’ve engineered a specialized fixation screw paired with an innovative motor mount capable of accommodating multiple angles effortlessly. This solution achieves remarkable angle adjustments of up to 25? degrees, ensuring a perfect balance of aesthetic integrity and procedural simplicity.

CAD/CAM Scan Body Solutions: Digital Precision

When it comes to digital impressions, GDT Scan Bodies offer unrivaled accuracy and ease of use. Made from Titanium Grade 5 (Ti-6Al-4V ELI), our Internal Hex Scan Bodies deliver unparalleled reliability for multiple applications. Featuring an anti-reflective coating, these scan bodies ensure micron-precise results, promoting the quality of high-definition scanning and further improving digital workflows.

Scan Body for Multi-Units

Our Scan Bodies for multi-unit abutments are made from PEEK (Polyether ether ketone) and offer a superior, non-reflective solution. Recognized for its extraordinary durability and long-term reliability within the dental industry, PEEK provides exceptional strength, enabling extensive reuse without compromising scan quality or accuracy.

CAD/CAM Digital Scan Analogs

Unlike traditional analogs, GDT CAD/CAM digital analogs excel in the virtual environment, allowing precise replicas of the dental implants exact location, orientation, and angulation.

Our CAD/CAM digital analogs feature a self-centering mechanism, ensuring secure, displacement-free installation within printed models. Additionally, they allow accurate torquing of prosthetic screws up to 15 Ncm directly on the printed model. With the flexibility to utilize both intraoral scanning and conventional impressions, CAD/CAM digital analogs represent a versatile and highly accurate solution for dental professionals.

Digital Workflow Demonstration: Clinical Case by Dr. Sarossi Benedek

This clinical video features Dr. Sarossi Benedek from Hungary, presenting the restoration of a single implant-supported crown for the #36 molar. Using GDT CAD/CAM digital library, the case integrates the 3Shape Trios3 Scanner for intraoral imaging and the Wieland Zenotec Select CNC for final crown fabrication. The video provides a step-by-step view of the digital workflow, from scan acquisition to milling, illustrating a practical and efficient approach to implant-based restoration.

GDT CAD/CAM Abutments Sizes

L / TypeStraight Anti-Rotational – SlimStraight Rotational – SlimStraight Anti-RotationalStraight RotationalAnguated Anti-RotationalAnguated Rotational
0.5mmTBS-SLTBSN-SLTBSTBSNATBSATBSN
1mm——–——–TBS1TBSN1ATBS1ATBSN1
2mm——–——–TBS2TBSN2ATBS2ATBSN2
3mm——–——–TBS3TBSN3ATBS3ATBSN3
4mm——–——–TBS4TBSN4ATBS4ATBSN4
Ti-Bases

TypeDigital Slim – Ø3.0Digital Standard – Ø3.8
CodeANG3D-SLANG3D
Digital Implant Analogs

TypeDigital Slim – Ø3.0Digital Standard – Ø3.8
CodeSBA-SLSBATI
Scan Bodies

TypeDigital AnalogScan Body 7mmScan Body 10mmScan Body 13mmTitanium Base
For MU 1.4NM-ANG3DNM-SB7NM-SB10NM-SB13NM-TBS
For MU 1.6MU-ANG3D——–MU-SBA——–MU-TBS
Components For Multi-Unit Abutments

Straight Titanium Base
Straight Titanium Base
https://gdentalt.com/wp-content/uploads/2025/04/Standard-Platform-Internal-Hex-2.42mm-sign-with-dimensions.svg

Anti-Rotational CAD/CAM Titanium Bases

LENGTH
0.5mm
1mm
2mm
3mm
4mm

GDT Anti-Rotational Titanium Base for Internal Hex 2.42mm Platform, with 0.5mm collar height and hexagonal base
GDT Anti-Rotational Titanium Base for Internal Hex 2.42mm Platform, with 1mm collar height and hexagonal base
GDT Anti-Rotational Titanium Base for Internal Hex 2.42mm Platform, with 2mm collar height and hexagonal base
GDT Anti-Rotational Titanium Base for Internal Hex 2.42mm Platform, with 3mm collar height and hexagonal base
GDT Anti-Rotational Titanium Base for Internal Hex 2.42mm Platform, with 4mm collar height and hexagonal base
CODE
TBS
TBS1
TBS2
TBS3
TBS4
PLATFORMØ3.8
DIAMETERØ4.5
CONNECTION Internal Hexagon 2.42mm
https://gdentalt.com/wp-content/uploads/2025/04/Standard-Platform-Internal-Hex-2.42mm-sign-with-dimensions.svg

Rotational CAD/CAM Titanium Bases

LENGTH
0.5mm
1mm
2mm
3mm
4mm

GDT Rotational Titanium Base for Internal Hex 2.42mm Platform, with 0.5mm collar height and round base
GDT Rotational Titanium Base for Internal Hex 2.42mm Platform, with 1mm collar height and round base
GDT Rotational Titanium Base for Internal Hex 2.42mm Platform, with 2mm collar height and round base
GDT Rotational Titanium Base for Internal Hex 2.42mm Platform, with 3mm collar height and round base
GDT Rotational Titanium Base for Internal Hex 2.42mm Platform, with 4mm collar height and round base
CODE
TBSN
TBSN1
TBSN2
TBSN3
TBSN4
PLATFORMØ3.8
DIAMETERØ4.5
CONNECTIONInternal Hexagon 2.42mm
https://gdentalt.com/wp-content/uploads/2025/04/Standard-Platform-Internal-Hex-2.42mm-sign-with-dimensions.svg

Angulated Anti-Rotational CAD/CAM Titanium Bases

LENGTH
0.5mm
1mm
2mm
3mm
4mm

GDT Anti-Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 0.5mm collar height and hexagonal base
GDT Anti-Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 1mm collar height and hexagonal base
GDT Anti-Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 2mm collar height and hexagonal base
GDT Anti-Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 3mm collar height and hexagonal base
GDT Anti-Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 4mm collar height and hexagonal base
CODE
ATBS
ATBS1
ATBS2
ATBS3
ATBS4
PLATFORMØ3.8
DIAMETERØ4.5
CONNECTIONInternal Hexagon 2.42mm
https://gdentalt.com/wp-content/uploads/2025/04/Standard-Platform-Internal-Hex-2.42mm-sign-with-dimensions.svg

Angulated Rotational CAD/CAM Titanium Bases

LENGTH
0.5mm
1mm
2mm
3mm
4mm

GDT Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 0.5mm collar height and round base
GDT Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 1mm collar height and round base
GDT Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 2mm collar height and round base
GDT Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 3mm collar height and round base
GDT Rotational Angulated Titanium Base for Internal Hex 2.42mm Platform, with 4mm collar height and round base
CODE
ATBSN
ATBSN1
ATBSN2
ATBSN3
ATBSN4
PLATFORMØ3.8
DIAMETERØ4.5
CONNECTIONInternal Hexagon 2.42mm
https://gdentalt.com/wp-content/uploads/2025/04/Slim-Platform-Internal-Hex-2.0mm-sign-with-dimensions.svg

Slim CAD/CAM Titanium Bases

TYPE
LENGTH
Anti-rotational
0.5mm
Rotational
0.5mm

GDT Anti-Rotational Titanium Base for Slim Internal Hex 2.0mm Platform, with 2mm collar height and hexagonal base
GDT Rotational Titanium Base for Slim Internal hex 2.0mm Platform, with 2mm collar height and round base
CODE
TBS-SL
TBSN-SL
PLATFORMØ3.0
DIAMETERØ3.8
CONNECTIONInternal Hexagon Slim 2.0mm
https://gdentalt.com/wp-content/uploads/2025/05/Slim-Standard-Platform-Internal-Hex-sign-with-dimensions.webp

Titanium Scan Bodies

CONNECTION
PLATFORM
DIAMETER
LENGTH
Slim
Ø3.0
Ø3.8
9.75mm
Standard
Ø3.8
Ø4.2
10.0mm

GDT Titanium Scan Body for Slim Internal Hex 2.0mm Platform
GDT Titanium Scan Body for Internal Hex 2.42mm Platform
CODE
SBA-SL
SBATI
CONNECTIONInternal Hexagon 2.42mm / Slim 2.0mm
https://gdentalt.com/wp-content/uploads/2025/05/Slim-Standard-Platform-Internal-Hex-sign-with-dimensions.webp

Digital CAD/CAM Implant Analogs

CONNECTION
DIAMETER
LENGTH
Slim
Ø3.0
12mm
Standard
Ø3.8
10mm

GDT Digital CAD/CAM Analog for slim internal hex 2.0 Platform Dental Implant
GDT Digital CAD/CAM Analog for internal hex 2.42 Standard Platform Dental Implant
CODE
ANG3D-SL
ANG3D
CONNECTIONInternal Hexagon 2.42mm / Slim 2.0mm

CAD/CAM Components For Multi Unit 1.4

TYPE
LENGTH
Digital Analog
9mm
Scan Body
7mm
Scan Body
10mm
Scan Body
13mm
Titanium Base
5mm

GDT Digital CAD/CAM Analog for Multi Unit 1.4
GDT PEEK Scan Body for Multi Unit 1.4, 7mm
GDT PEEK Scan Body for Multi Unit 1.4, 10mm
GDT PEEK Scan Body for Multi Unit 1.4, 13mm
GDT Titanium Base for Multi Unit 1.4, 5mm
CODE
NM-ANG3D
NM-SB7
NM-SB10
NM-SB13
NM-TBS

CAD/CAM Components For Multi-Unit 1.6

TYPE
LENGTH
Digital Analog
12mm
Titanium Scan Body
10mm
Titanium Base
5mm

GDT Digital CAD/CAM Analog for Multi Unit 1.6

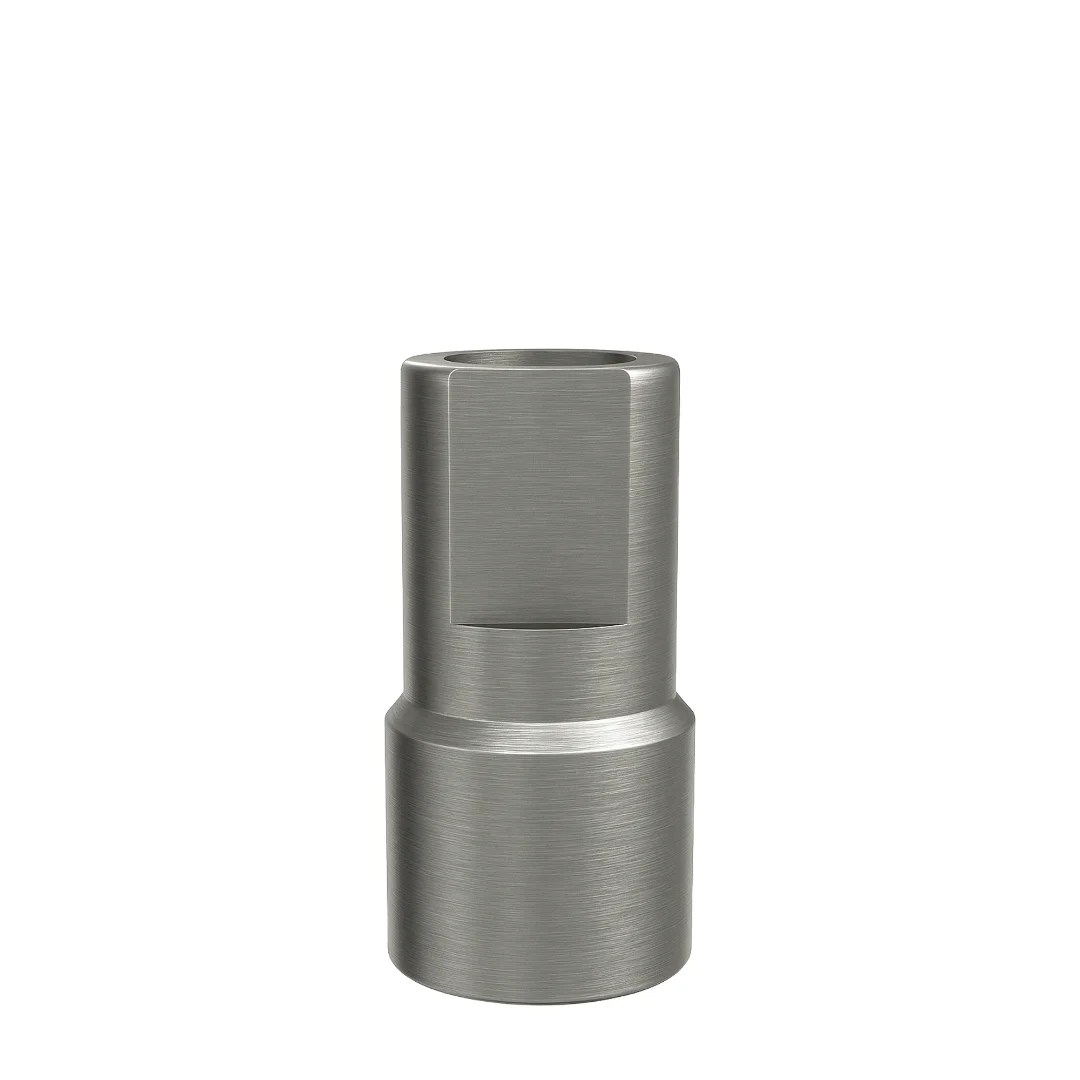

GDT Titanium Scan Body for Multi Unit 1.6, 10mm
GDT Titanium Base for Multi Unit 1.6, 5mm
CODE
MU-ANG3D
MU-SBA
MU-TBS

Media

FAQs

How do GDT Angulated Titanium Bases simplify restorative procedures?

What does GDT CAD/CAM digital library include and which systems is it compatible with?

How does the concave design of GDT Titanium Bases improve restoration results?

GDT Internal Hex 2.42mm connection sign
GDT Slim Platform Internal Hex 2.0mm connection sign
